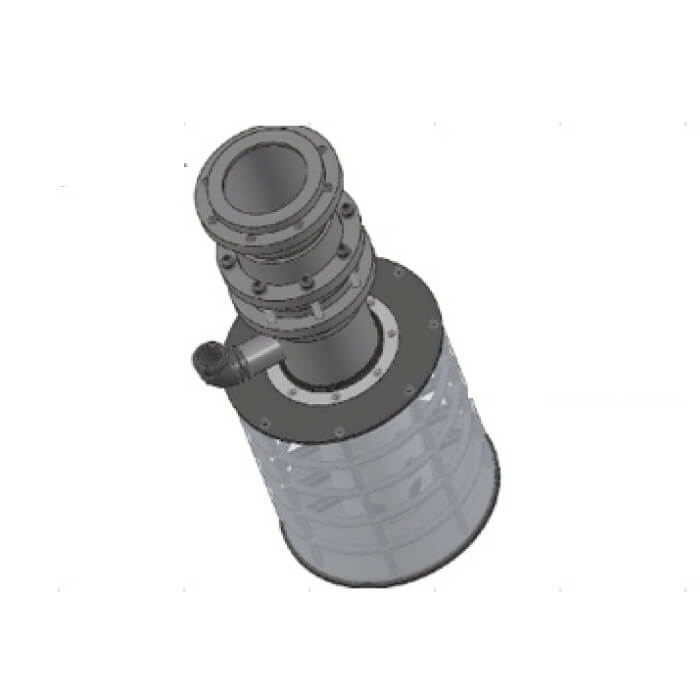

Helix Hydro Self Cleaning Suction Strainer – HISS100 – 100mm – 91 m³/hr max flow – PVC Body – 2.4mm SS304 Screen
by Helix Hydro
SKU HISS100
Original price
$4,596.90
-
Original price
$4,596.90
Original price
$4,596.90
$4,596.90
-
$4,596.90
Current price
$4,596.90
📢 For orders over $100, FREE Shipping Australia-wide
The Helix Hydro Self Cleaning Suction Strainer is ideal for surface water applications with severe algae and coarse solids. The spinning basket increases cleaning efficiency. The strainer features a PVC body, a 2.4mm stainless steel screen (SS304), and an included wafer check valve. It is supplied with a pressure gauge for the spray line and one plastic screen filter (40 mesh) for nozzle protection. Minimum pressure to drive the supply line is 3 Bar. The unit is provided with ANSI 150 flanging.
Suitable Applications
- Surface water intake
- Severe algae conditions
- Coarse solids removal
- Raw water protection for pumps
Key Specifications
| Product Name | Self Cleaning Suction Strainer |
| Product Number | HISS100 |
| Product Type | Self Cleaning Suction Strainer |
| Size | 100 mm |
| Max Flow Rate | 91 m³/hr |
| Supply Line Flow | 3.2 m³/hr |
| Supply Line Size | 25 mm |
| Body Material | PVC |
| Screen Material | 2.4mm Stainless Steel (SS304) |
| Minimum Supply Line Pressure | 3 Bar |
| Included Components | Wafer check valve, pressure gauge, 40 mesh plastic screen filter for nozzle protection |
| Flanging | ANSI 150 |
