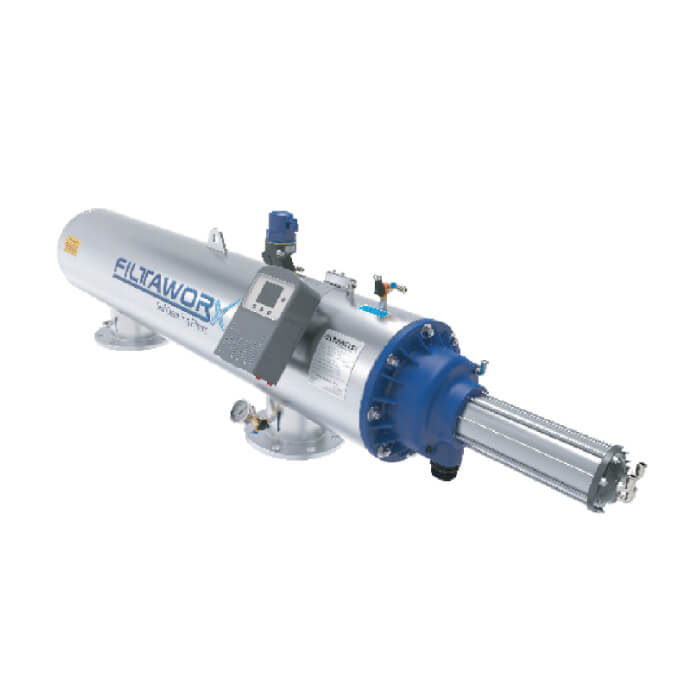

Filtaworx Online Series Fully Automatic Self-Cleaning Screen Filter Electric Control – FW150-EL – 150mm – 10 Bar – 40-150 m³/hr – Parallel Inlet/Outlet – 240V AC
by Filtaworx
SKU FW150-EL
Original price
$20,765.25
-
Original price
$20,765.25
Original price
$20,765.25
$20,765.25
-
$20,765.25
Current price
$20,765.25
📢 For orders over $100, FREE Shipping Australia-wide
The Helix Hydro Online Series Fully Automatic Self-Cleaning Screen Filter features a parallel inlet/outlet configuration with electric controls using the Helix electric controller, allowing backwash by both time and pressure differential. Power supply options include 240V AC and battery powered DC. The electric controls come mounted on the filter ready for operation, requiring only a standard 240V AC 10A wall socket connection. The filter body is constructed from SS304 stainless steel as standard (SS316L and SS904L available on request), with a fine screen made of SS316L. This filter has a maximum operating pressure of 1000 kPa (150 psi / 10 Bar) and a filtration area of 5603 cm².
Suitable Applications
- Large-scale agricultural irrigation systems
- Municipal water treatment plants
- Industrial process water filtration
- Automated filtration systems with power available
- Sites requiring scheduled backwash cycles
Key Specifications
| Product Name | Online Series Fully Automatic Self-Cleaning Screen Filter – Electric Control |
| Product Number | FW150-EL |
| Product Type | Online Series Fully Automatic Self-Cleaning Screen Filter |
| Control Type | Electric – backwash by time and pressure differential |
| Drive Type | Hydraulic drive with electric controls |
| Configuration | Parallel Inlet/Outlet |
| Size | 150 mm |
| Pressure Rating | 10 Bar (1000 kPa / 150 psi) – PN16 high pressure available |
| Filter Area | 5603 cm² |
| Flow Rate Range | 40 – 150 m³/hr |
| Body Material | SS304 stainless steel (SS316L, SS904L on request) |
| Fine Screen Material | SS316L stainless steel |
| Included Components | Helix electric controller mounted on filter |
| Power Supply Options | 240V AC standard (10A wall socket), DC battery available on request |
| Power Requirement | 240V AC or DC battery |
