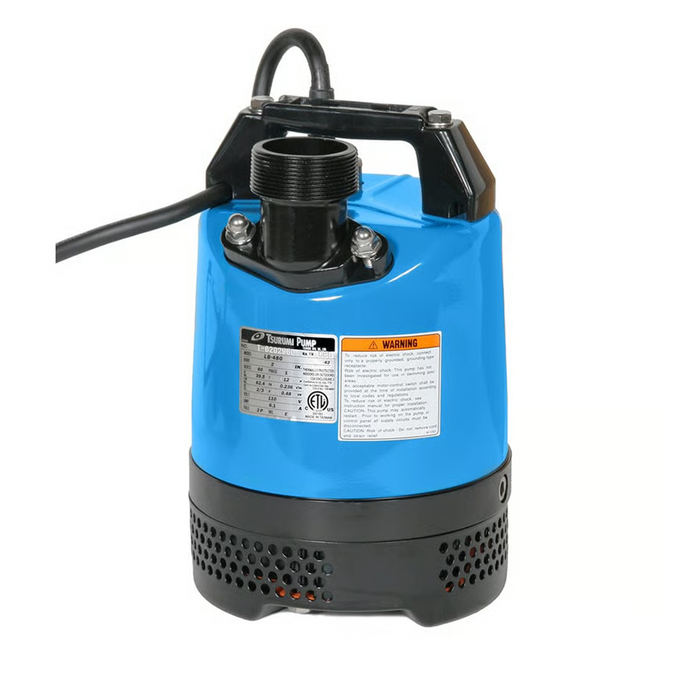

Tsurumi LB-480-62 (115V) Manual Electric Submersible Pump – LB-480
by Tsurumi
SKU LB-480
Original price
$623.00
-
Original price
$623.00
Original price
$623.00
$623.00
-
$623.00
Current price
$623.00
📢 For orders over $100, FREE Shipping Australia-wide
Warranty: Manufacturer’s Warranty

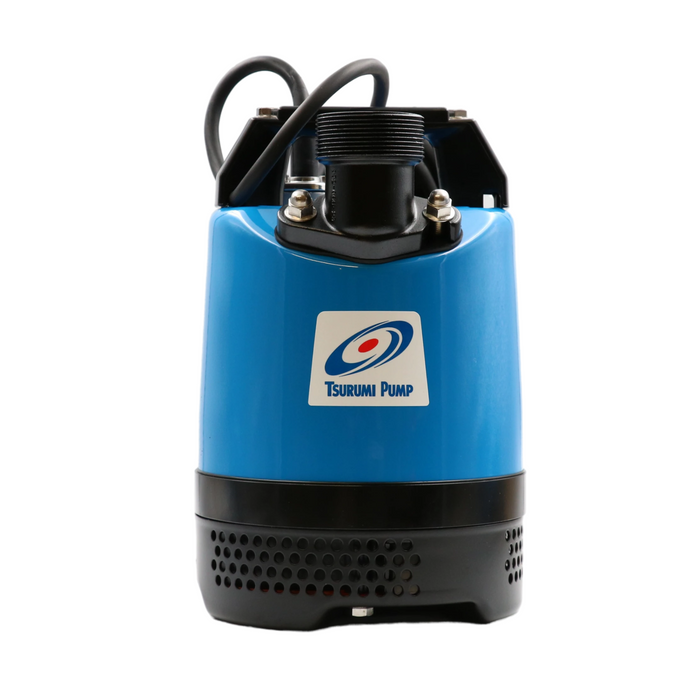

The Tsurumi LB-480 is a slimline submersible pump designed for durability and performance. Its lightweight, compact design allows easy transport and fits into an 8″ pipe for confined area installation. The pump features a wear‑resistant semi‑vortex urethane impeller, dual silicon carbide mechanical seal faces, and a rugged cast iron / aluminum housing. The top discharge maximizes motor cooling efficiency, enabling continuous duty operation at low levels and extended dry‑run capability. Discharge size is 2″ straight male NPT, 0.667 HP, 32 ft cable, maximum solids handling 0.236″, manual operation, single‑phase, 115 V.
Suitable Applications
- Residential, commercial, industrial wastewater and site drainage
- Decorative waterfalls and fountains
- Raw water supply from lakes or rivers
- Sediment removal from small sumps or basins
Key Specifications
| Product Name | LB-480-62 (115V) |
| Product Number (SKU) | LB-480 |
| Pump Type | Manual slimline submersible pump with semi‑vortex impeller |
| Discharge Size | 2″ |
| Discharge Type | Straight Male NPT |
| Horse Power | 0.667 HP |
| Cable Length | 32 ft |
| Max Solids Handling | 0.236″ |
| Operation Mode | Manual |
| Phase | Single |
| Voltage | 115 V |
| Impeller Material | Urethane (wear‑resistant) |
| Mechanical Seal | Dual silicon carbide |
| Housing Material | Cast iron / aluminum |
| Special Feature | Slimline design fits 8″ pipe, top discharge for cooling, extended dry‑run capability |
Documentation & Downloads
| LB-480-62 Data Sheet | Download |
| LB-480-62 Parts List | Download |
| LB Series Operation Manual | Download |
