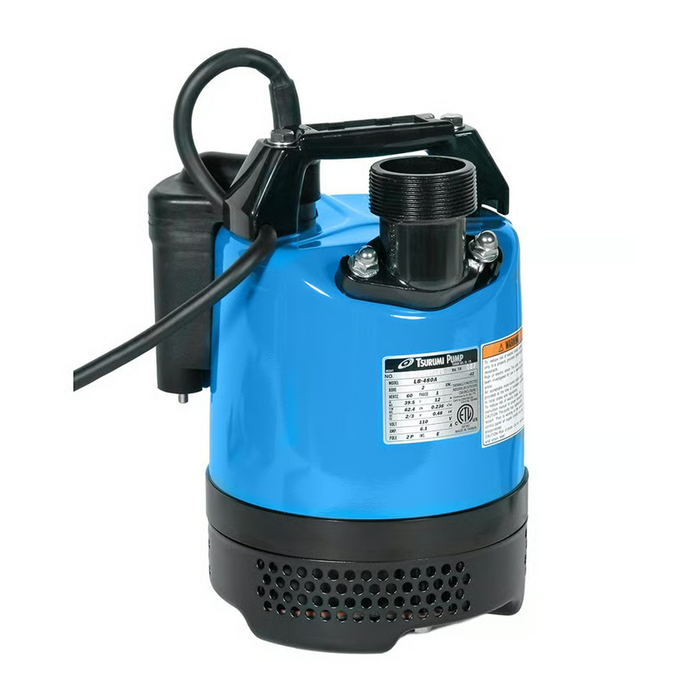

Tsurumi LB-480A-62 (115V) Auto Electric Submersible Pump – LB-480A
📢 For orders over $100, FREE Shipping Australia-wide
Warranty: Manufacturer’s Warranty
The Tsurumi LB-480A is a single‑phase, lightweight, compact automatic dewatering pump. Its slim design fits into an 8″ casing. The semi‑vortex pump design maintains performance even as the impeller wears. Discharge direction is selectable between top and horizontal to prevent hose folding. The automatic model features an electrode‑based level control with a timer function that eliminates malfunction from rough water surfaces. The pump turns on when water meets the electrodes, runs for exactly one minute after water clears, then shuts off. A urethane impeller and wear plates, along with dual silicon carbide mechanical seal faces, ensure durability and longevity. Top discharge maximizes motor cooling for continuous low‑level operation and extended dry‑run capability. Discharge size is 2″ straight male NPT, 0.667 HP, 32 ft cable, maximum solids handling 0.236″, automatic‑electrode operation, single‑phase, 115 V.
Suitable Applications
- Residential, commercial, industrial wastewater and site drainage
- Decorative waterfalls and fountains
- Raw water supply from lakes or rivers
- Sediment removal from small sumps or basins
Key Specifications
| Product Name | LB-480A-62 (115V) |
| Product Number (SKU) | LB-480A |
| Pump Type | Single‑phase automatic submersible dewatering pump with semi‑vortex impeller and electrode level control |
| Discharge Size | 2″ |
| Discharge Type | Straight Male NPT (selectable top/horizontal) |
| Horse Power | 0.667 HP |
| Cable Length | 32 ft |
| Max Solids Handling | 0.236″ |
| Operation Mode | Automatic – Electrode relay with timer (runs 1 minute after water clears) |
| Phase | Single |
| Voltage | 115 V |
| Impeller Material | Urethane (wear‑resistant) |
| Mechanical Seal | Dual silicon carbide |
| Housing Material | Cast iron / aluminum |
| Special Features | Slimline fits 8″ pipe, selectable discharge direction, electrode auto control with timer, extended dry‑run capability |
| LB-480A-62 Data Sheet | Download |
| LB-480A-62 Parts List | Download |
| LB Series Operation Manual | Download |
