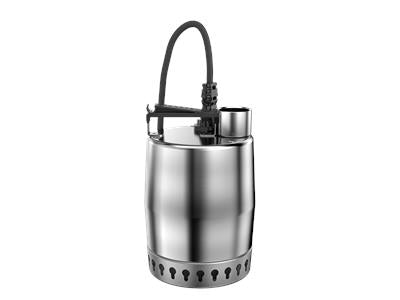

Grundfos UNILIFT KP.150.M.1 Single phase without float switch
Grundfos UNILIFT KP.150.M.1
Description
The Grundfos UNILIFT KP is a highly durable submersible pump constructed from stainless steel, making it ideal for all types of grey water and storm water handling around the home and in light industrial applications.
Features
• High corrosion resistance - Constructed of high quality industrial grade components. All parts in contact with water are made from 304 stainless steel.
• Options for confined areas - A vertical Niro Float Switch option is available for installation into confined pits where a regular float may not operate properly
• Suitable for fully or partially submerged use - Comes with an integrated motor cooling jacket, allowing the pump to operate for extended periods whilst only partly submerged
• Light weight and portable - At a weight of no more than 7 kg the UNILIFT KP can be used in either a permanent installation or as a portable drainage pump
• Easy submerged installation – plug & pump - Connect the pump outlet to the pipework, plug into a power outlet and you’re ready to pump
Liquid temperature: 0°C to +50°C, 70°C for maximum 2 min, with at least 30 min intervals
Impeller type: Semi-open
Max. particle size: Diam 10 mm
Supply voltage: 1 x 220-230 Volt 50 Hz
Enclosure class: Suitable for submerged installation (IP68)
Scope of delivery: 5 m cable with plug & non return valve (AV1 version only)
Versions:
M.1 - Single phase without float switch
AV.1 - Single phase with vertical float switch
A.1 - Single phase with float switch
