Grundfos UNILIFT AP35B.50.06.A1V Single phase, with float switch and Vortex impeller
📢 For orders over $100, FREE Shipping Australia-wide

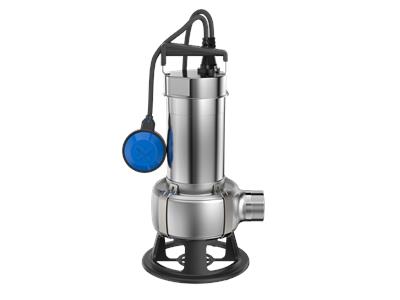

Grundfos UNILIFT AP35B.50.06.A1V
The Grundfos UNILIFT AP 35B and AP 50B are heavy duty, submersible pumps of stainless steel and composite construction, which are ideal for handling dirty stormwater runoff, domestic wastewater from bathroom basins or showers and fibrous laundry wastewater.
Features
- Highly corrosion resistant - Constructed of high quality industrial grade components. All internal parts are manufactured from 304 stainless steel
- Handle very dirty water with ease - Can both easily pump large particles in stormwater run off or material fibres in laundry grey water
- Easy installation – plug & pump - Connect the pump outlet to the pipework, plug into a power outlet and you’re ready to pump
- Simple cleaning and maintenance - Features quick release clips allowing easy dismantling of the pump body for cleaning or unblocking. AP35B & 50B can be permanently installed on an auto-coupling device for trouble free maintenance.
Liquid temperature: 0°C to +40°C
Impeller type: Vortex
Max. particle size: Diam 35 mm for AP 35B and Diam 50 mm for AP50B
Supply voltage: 1 x 230 Volt 50 Hz or 3 x 415 Volt 50 Hz
Enclosure class: Suitable for submerged installation (IP68)
Scope of delivery: 10 m cable with plug (3 phase version without plug)
Version:
A1V single phase, with float switch and Vortex impeller
3V three phase, no float switch and Vortex impeller
Specifications
| Product Name | UNILIFT AP35B.50.06.A1V |
| Product No | 96432501 |
| EAN Number | 5700393400597 |
| Suitable for | Commercial wastewater, Domestic wastewater |
| Maximum Flow | 5 l/s |
| Maximum Head | 11 m |
| Impeller Type | VORTEX |
| Max. Particle | 35 mm |
| Approvals | CE, RCM, LGABG, EAC, TUVRHWID |
| Pump Housing | Stainless steel, EN 1.4301, AISI 304 |
| Impeller Material | Stainless steel, EN 1.4301, AISI 304 |
| Type of Connection | Rp |
| Connection Size | 2 inch |
| Maximum Installation Depth | 7 m |
| Installation Place | Indoor / outdoor |
| Ambient Temperature Range | 0 .. 40 °C |
| Liquid Temperature Range | 0 .. 40 °C |
| Selected Liquid Temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Power Input P1 | 1 kW |
| Rated Power P2 | 0.66 kW |
| Mains Frequency | 50 Hz |
| Rated Voltage | 1 × 220-240 V |
| Rated Current | 4.6 A |
| Power Factor (Cos φ) | 0.98 |
| Rated Speed | 2810 rpm |
| Capacitor Size - Run | 16 µF/400 V |
| Enclosure Class (IEC 34-5) | IP68 |
| Insulation Class (IEC 85) | F |
| Built-in Motor Protection | CONTACT |
| Thermal Protection | Internal |
| Power Cable Length | 10 m |
| Cable Plug Type | AU |
| Controls | Level switch A |
| Net Weight | 10.3 kg |
| Gross Weight | 11.1 kg |
| Sales Region | Australia |
| Environmental Approvals | WEEE |
