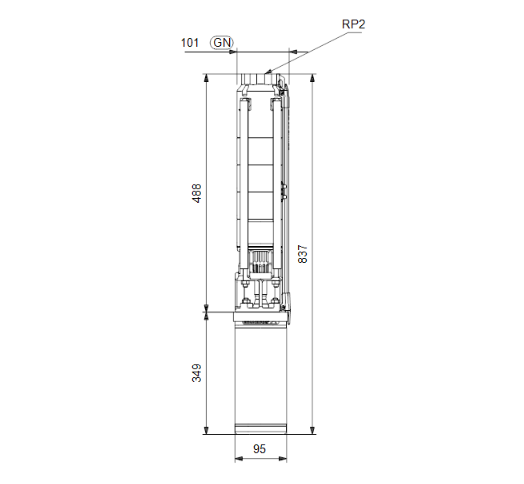

Grundfos SP 9-5 Submersible Borehole Pump – 98699025 (1 x 240V, MS402/CSCR Motor)
📢 For orders over $100, FREE Shipping Australia-wide
Grundfos SP 9-5 is a stainless-steel submersible borehole pump designed for pumping clean water from deep wells and boreholes. It can be installed vertically or horizontally and is constructed from EN 1.4301 (AISI 304) stainless steel for superior corrosion resistance. This pump carries drinking water approval and is fitted with a 1.1 kW MS402 motor with sand shield, lip seal, water-lubricated journal bearings, and a volume compensating diaphragm. The motor is a canned type submersible motor offering good mechanical stability and high efficiency, suitable for temperatures up to 40 °C. The motor is not fitted with a temperature sensor; however, a Pt1000 sensor can be added if temperature monitoring is desired. The motor is designed for direct-on-line starting (DOL).
Suitable for:
- Domestic ground water intake
- Domestic water pressure boosting
- Ground water intake
- Irrigation
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Livestock & Wildlife Watering
- Water Treatment Fertigation, Chemigation & Dosing
- Pivot & Lateral Irrigation
- Frost protection
- Solar boosting and water supply solutions
- Controls & Digital Groundwater Management
- Solar Controls & Digital Water Management
- Solar Water Treatment Fertigation & Dosing
- Municipal solar solutions
- Agriculture solar solutions
- Livestock watering with solar solutions
- Community solar solutions
Key Specifications:
| Product name | SP 9-5 |
| Product No. | 98699025 |
| Rated flow | 9 m³/h |
| Rated head | 25.5 m |
| Stages | 5 |
| Power required | 1.1 kW |
| Motor type | MS402 or CSCR (NEMA) |
| Rated voltage | 1 x 240 V |
| Rated current | 7.1 A |
| Enclosure class | IP68 |
| Material | Stainless steel EN 1.4301 / AISI 304 |
| Net weight | 17.7 kg |
Documentation & Downloads:
| Document | Download |
|---|---|
| Flow Sleeves (Quick Guide) | 📄 Download PDF |
| Pt100, Pt1000 (Quick Guide) | 📄 Download PDF |
| Cathodic protection (Quick Guide) | 📄 Download PDF |
| SP (Safety instructions) | 📄 Download PDF |
| SP (Installation & Operating Instructions) | 📄 Download PDF |
| SP A, SP - Submersible Pumps, Motors & Accessories (Data Booklet) | 📄 Download PDF |
| MS6000 (Data Booklet) | 📄 Download PDF |
| SP Accessories (Data Booklet) | 📄 Download PDF |
| SP 17, 30, 46, 60, 77, 95, 125, 160, 215 (Illustrated Instruction) | 📄 Download PDF |
| SP, SP A (Service Kit Catalogue) | 📄 Download PDF |
| SP (Recommended Spare Parts) (Service Kit Catalogue) | 📄 Download PDF |
| SP 18 (Service Kit Catalogue) | 📄 Download PDF |
| SP 32 (Service Kit Catalogue) | 📄 Download PDF |
