Grundfos CR 45-1 A-F-A-E-HQQE Vertical Multistage Centrifugal Pump – 96122797 (3 x 380-415DV)
by Grundfos
SKU 96122797
Original price
$3,647.88
-
Original price
$3,647.88
Original price
$3,647.88
$3,647.88
-
$3,647.88
Current price
$3,647.88
📢 For orders over $100, FREE Shipping Australia-wide
Vertical, non-self-priming, multistage in-line centrifugal pump for installation in pipe systems and on a foundation. Pump head and base are cast iron, wetted parts are stainless steel (EN 1.4301). Shaft seal assembly length according to EN 12756. Pipework connection via DIN flanges. Motor is a 3-phase AC motor, 4 kW, IE3 efficiency class.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CR 45-1 A-F-A-E-HQQE |
| Product Number | 96122797 |
| EAN | 5700396688411 |
| Pump Type | Vertical / Multistage Centrifugal |

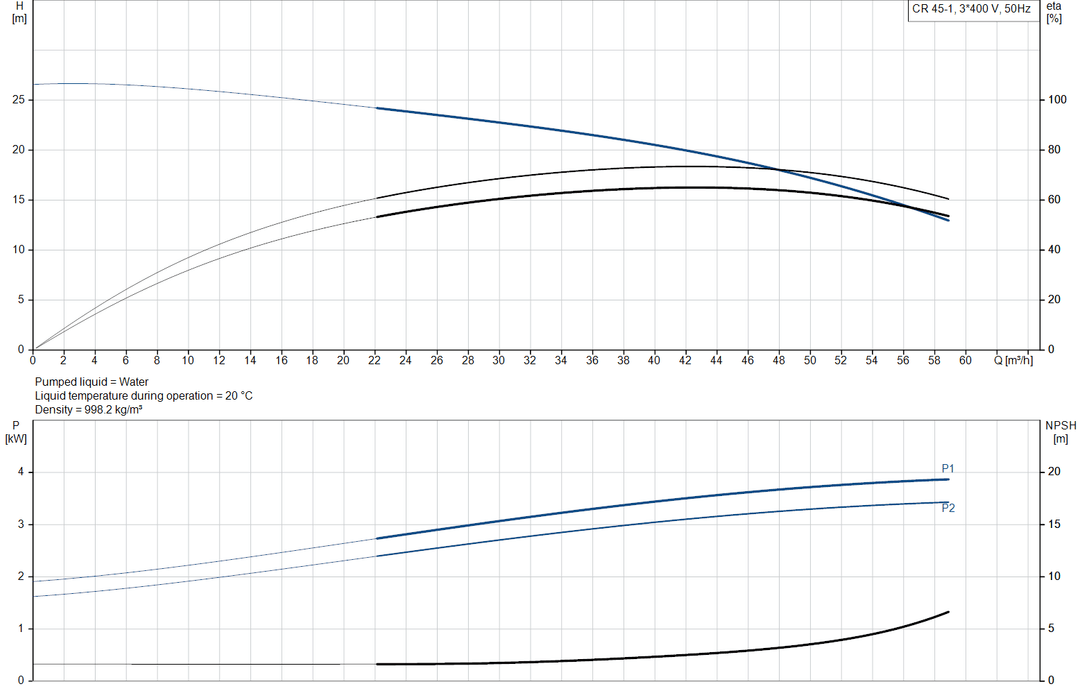

| Rated Flow | 45 m³/h |
| Rated Head | 19.1 m |
| Maximum Head | 26.6 m |
| Speed (Pump Data) | 2917 rpm |
| Stages / Impellers | 1 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQE |
| Liquid Temperature Range | -30 .. 120 °C |
| Maximum Operating Pressure | 16 bar |
| Connections | DN 80 / DN 80, DIN flanges, PN 40 |
| Base / Head Material | Cast iron |
| Impeller Material | Stainless steel EN 1.4301 / AISI 304 |
| Bearing | SIC / Graflon |

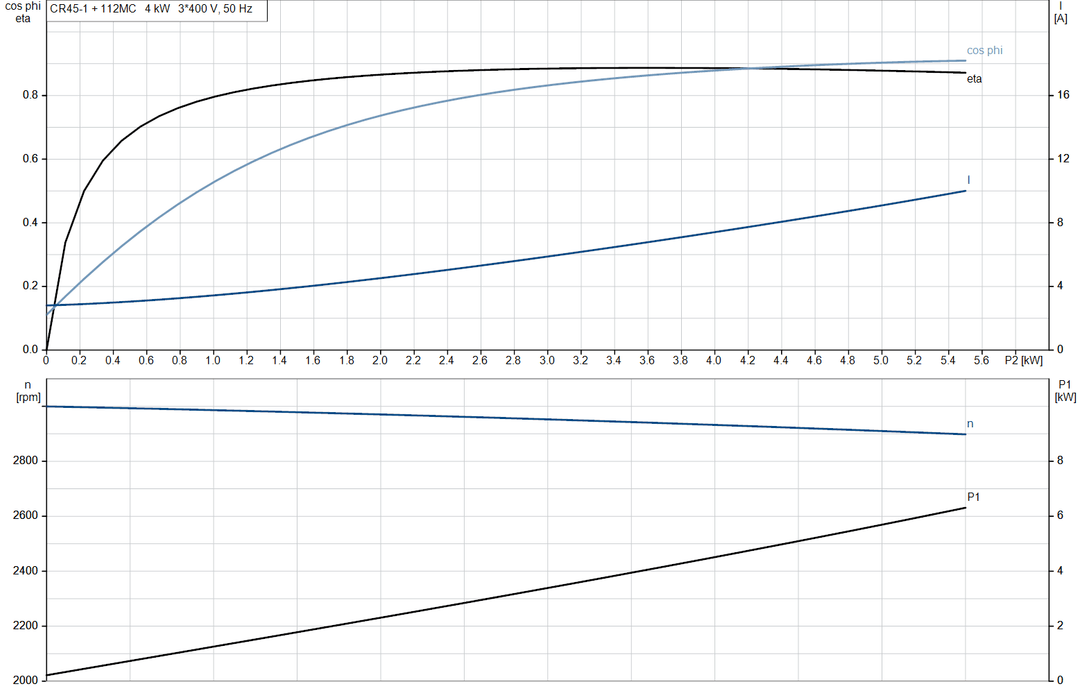

| Motor Power (P2) | 4 kW |
| Voltage | 3 x 380-415D V |
| Frequency | 50 Hz |
| Rated Current | 7.9 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 88.1 % |
| Enclosure Class | 55 Dust/Jetting |
| Insulation Class | F |
| MEI | 0.70 |
| Net / Gross Weight | 93.3 / 116 kg |
| Shipping Volume | 0.309 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Product PDF | Download |
