Grundfos UNILIFT KP.350.M.1 Single phase without float switch
📢 For orders over $100, FREE Shipping Australia-wide

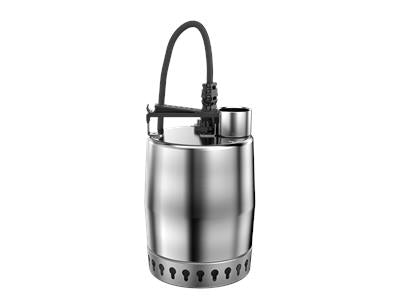

Grundfos UNILIFT KP.350.M.1
Description
The Grundfos UNILIFT KP is a highly durable submersible pump constructed from stainless steel, making it ideal for all types of grey water and storm water handling around the home and in light industrial applications.
Features
• High corrosion resistance - Constructed of high quality industrial grade components. All parts in contact with water are made from 304 stainless steel.
• Options for confined areas - A vertical Niro Float Switch option is available for installation into confined pits where a regular float may not operate properly
• Suitable for fully or partially submerged use - Comes with an integrated motor cooling jacket, allowing the pump to operate for extended periods whilst only partly submerged
• Light weight and portable - At a weight of no more than 7 kg the UNILIFT KP can be used in either a permanent installation or as a portable drainage pump
• Easy submerged installation – plug & pump - Connect the pump outlet to the pipework, plug into a power outlet and you’re ready to pump
Liquid temperature: 0°C to +50°C, 70°C for maximum 2 min, with at least 30 min intervals
Impeller type: Semi-open
Max. particle size: Diam 10 mm
Supply voltage: 1 x 220-230 Volt 50 Hz
Enclosure class: Suitable for submerged installation (IP68)
Scope of delivery: 5 m cable with plug & non return valve (AV1 version only)
Versions:
M.1 - Single phase without float switch
AV.1 - Single phase with vertical float switch
A.1 - Single phase with float switch
| Product Name | UNILIFT KP.350.M.1 |
| Product No | 92533648 |
| EAN Number | 5715115850604 |
| Suitable for | Commercial, Domestic & Industrial wastewater |
| Maximum Flow | 3.89 l/s |
| Rated Head | 5.84 m |
| Maximum Head | 9 m |
| Max. Particle Size | 10 mm |
| Impeller Type | Semi-open |
| Pump Housing | Stainless steel (EN 1.4301 / AISI 304) |
| Impeller Material | Stainless steel (EN 1.4301 / AISI 304) |
| Type of Connection | Rp |
| Connection Size | 1 1/4 inch |
| Maximum Installation Depth | 2 m |
| Installation Location | Indoor |
| Liquid Temperature Range | 0 .. 40 °C |
| Ambient Temperature Range | 0 .. 50 °C |
| Power Input (P1) | 720 W |
| Rated Power (P2) | 0.35 kW |
| Rated Voltage | 1 × 220–240 V |
| Rated Current | 3.2 A |
| Mains Frequency | 50 Hz |
| Capacitor Size | 10 µF / 400 V |
| Enclosure Class | IP68 |
| Insulation Class | F |
| Built-in Motor Protection | Contact / Internal thermal protection |
| Power Cable Length | 5 m |
| Cable Plug Type | AU |
| Controls | Level switch (M) |
| Net Weight | 7.18 kg |
| Gross Weight | 7.61 kg |
| Shipping Volume | 0.0126 m³ |
| Environmental Approvals | WEEE |
