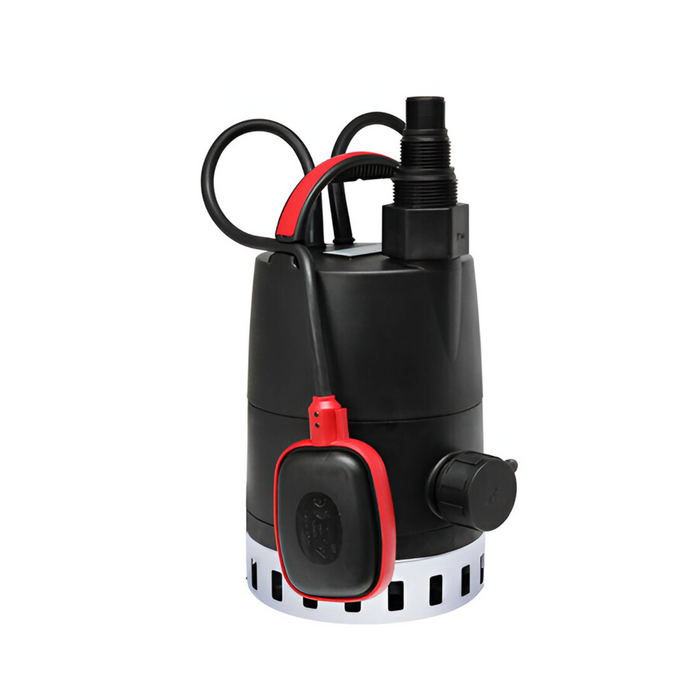

Grundfos Unilift CC5 - A1
The Grundfos UNILIFT CC is a lightweight single-stage drainage pump with a semi-open impeller. They are designed for pumping drain water and grey wastewater containing particles up to 10 mm Diam.
UNILIFT CC can pump down to a water level of 3 mm above the floor by removing the strainer and can be used in permanent installations or as a portable pump.
Features
- Able to pump down to just 3 mm of water - Can pump down to a water level of just 3 mm after removing the strainer, making it perfect for draining pools, ponds or tanks for maintenance
- Suitable for fully or partially submerged use - Comes with an integrated motor cooling jacket, allowing the pump to operate for extended periods whilst only partially submerged
- High quality - Constructed of corrosion resistant composite and stainless steel components inside and out
- Light weight - At a weight of no more than 7 kg, the UNILIFT CC can be used in either a permanent installation or as a portable drainage pump
- Easy submerged installation – plug & pump - Connect the pump outlet to the pipework, plug into a power outlet and you’re ready to pump
Liquid temperature: +4°C to +40°C, 70°C for maximum 2 min, with at least 30 min intervals
Impeller type: Semi-open
Max. particle size: Diam 10 mm
Supply voltage: 1 x 220-240 Volt 50 Hz
Enclosure class: Suitable for submerged installation (IP68)
Pump outlets: 2 outlet choices: at the top or on side (multiple thread sizes -
Male 3/4" / 1" / 1-1 1/4" & Female 1-1 1/4")
Cable length: 10 m cable with plug
| Model | UNILIFT CC5 - A1 |
| Product Number | 96280972 |
| Maximum flow | 1.67 l/s |
| Rated flow | 0.711 l/s |
| Maximum head | 5 m |
| Rated head | 2.52 m |
| Max. Particle | 10 mm |
| Approvals | CE, LGA, VDE, RCM |
| Pump housing | Polypropylene (PP - GF15) |
| Impeller | Composite (PP 20 GF) |
| Motor | Stainless steel EN 1.4301 (AISI 304) |
| Shaft | Stainless steel EN 1.4301 (AISI 304) |
| Strainer | Stainless steel EN 1.4301 (AISI 304) |
| Type of connection | R |
| Size of connection | 1 1/4 inch |
| Maximum installation depth | 2 m |
| Liquid temperature range | 0 .. 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Power input P1 | 250 W |
| Rated power P2 | 0.108 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 220-240 V |
| Rated current | 0.98 A |
| Rated speed | 2850 rpm |
| Capacitor size - run | 4 µF / 450 V |
| Enclosure class | IP68 |
| Insulation class | B |
| Ex-protection standard | Yes |
| Length of power cable | 5 m |
| Cable plug type | AUS |
| Controls | Level switch |
| Net weight | 4.51 kg |
| Gross weight | 5.27 kg |
| Shipping volume | 0.017 m³ |
| Environmental approvals | WEEE |
