Grundfos JP 4-54 - pump only
📢 For orders over $100, FREE Shipping Australia-wide
Grundfos JP is a self-priming, single stage centrifugal jet pump. Designed for domestic use and ensure a supply
of clean, rainwater or potable water to households and gardens.
The Grundfos Jet Pump range comprises three configurations, all built on the robust self-priming Grundfos JP Pump.
Features
• For water sources above and below pump level - Designed with good suction lift capabilities, the pump is able to draw water up to 8 metres vertically from below the level of the pump
• Excellent value for money - Ideal for small to medium household use
• Built to last - Constructed of corrosion resistant composite and stainless steel components
• Easy installation – plug & pump - Connect the pump inlet and outlet to the pipework, prime the pump, plug into a power outlet and you’re ready to pump
Ambient temperature: Max. 0°C to +40°C
Liquid temperature: Max. 0°C to +40°C
Suction lift: Max. 8 m
System pressure: Max. 6 bar
Supply voltage: 1 x 230 Volt 50 Hz, 1 x 115V 60Hz
Enclosure class: Suitable for covered installation (IP44)
Version with cable: Cable length 1.5 m with plug

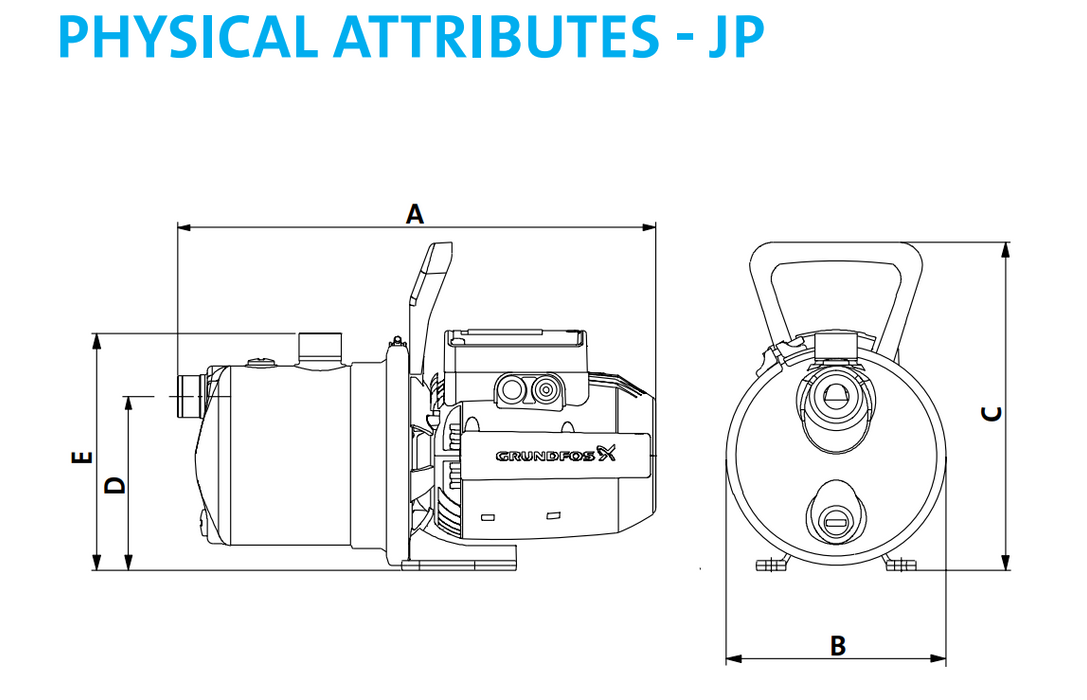

| Model | A |
| Product Number | 99458784 |
| Maximum head | 50 m |
| Rated head | 46 m |
| Rated flow | 4 m³/h |
| Primary shaft seal | BBVP |
| Approvals | RCM |
| Curve tolerance | ISO9906:2012 3B |
| Pump housing | Stainless steel EN 1.4301 (AISI 304) |
| Impeller | Composite PPO-20GF |
| Material code | S |
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | 6 bar |
| Maximum permissible inlet pressure | 1 bar |
| Pipe connection standard | ISO 228-1 |
| Pump inlet | G1 |
| Pump outlet | G1 |
| Pressure rating for connection | PN 6 |
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Power input P1 | 1130 W |
| Rated power P2 | 0.746 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Rated current | 5.1 A |
| Starting current | 17.8 A |
| Rated speed | 2800 rpm |
| Capacitor size - run | 16 µF / 450 V |
| Enclosure class | IP44 |
| Insulation class | F |
| Length of cable | 1.5 m |
| Power plug | Australian plug |
| Cable | Y |
| Controls | Presscontrol (without press control), on/off switch not included |
| Type of connector | Type I (AS/NZS 3112) |
| Net weight | 10.5 kg |
| Gross weight | 12.6 kg |
| Shipping volume | 0.026 m³ |
| Environmental approvals | WEEE |
