Grundfos SOLOLIFT2 WC-1: LIFTING STATION SMALL FOR BASE STAND TOILET – 97775324
by Grundfos
SKU 97775324
Original price
$1,127.50
-
Original price
$1,127.50
Original price
$1,127.50
$1,127.50
-
$1,127.50
Current price
$1,127.50
📢 For orders over $100, FREE Shipping Australia-wide

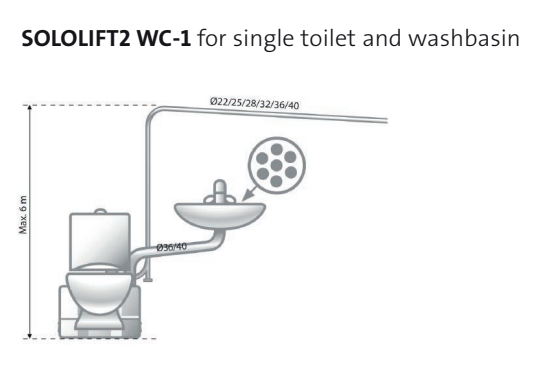

The Grundfos SOLOLIFT2 WC-1 is a compact, ready-to-install automatic lifting station designed for domestic wastewater containing faeces. It is ideal for installations where wastewater cannot be discharged by gravity, such as basement bathrooms or locations remote from the main soil pipe. The WC-1 version is specifically designed for connection to a single toilet with an additional inlet for a washbasin. Equipped with a VORTEX impeller with integrated grinder, the unit ensures reliable pumping of sewage containing toilet paper and solids, while its low switching levels allow flexible installation in confined spaces.
Key Specifications:
| Product Model | SOLOLIFT2 WC-1 |
| Product Number | 97775324 |
| Application | Domestic wastewater with faeces |

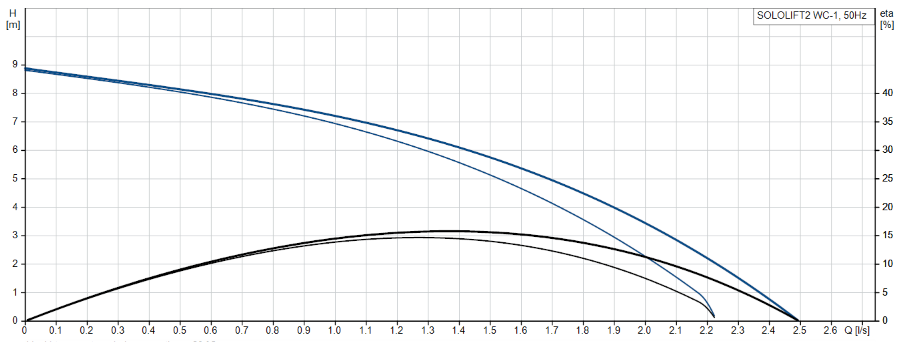

| Rated Flow | 1.37 l/s |
| Maximum Flow | 2.48 l/s |
| Rated Head | 6.21 m |
| Maximum Head | 8.5 m |
| Pump Speed | 2800 rpm |
| Impeller Type | VORTEX with GRINDER |
| Max Particle Size | 25 mm |
| Liquid Temperature Range | 0 – 50 °C |
| Selected Liquid Temperature | 20 °C |
| Tank Volume | 9 l |
| Inlet Connection | Smooth pipe Ø32/36/40, DN100 (1–4 inch) |
| Outlet Connection | Smooth pipe Ø22–40 mm (0.5–1.25 inch) |
| Pressure Rating | PN 1.5 |
| Power Input (P1) | 620 W |
| Rated Power (P2) | 0.42 kW |
| Rated Voltage | 1 × 220–240 V |
| Mains Frequency | 50 Hz |
| Rated Current | 3 A |
| Enclosure Class | IP44 |
| Insulation Class | F |
| Thermal Protection | THERMIK S06-150-05 |
| Power Cable | H05VV-F-3G, 1.2 m, AU plug |
| Net Weight | 7.25 kg |
| Gross Weight | 9.55 kg |
| Country of Origin | DE |
| Approvals | CE, CHROHS, MORO, RCM, WATERMARK |
| Standard | EN 12050-3 |
Documentation & Downloads:
| Document | Download |
|---|---|
| GRUNDFOS Pumps for Home and Garden – Product Brochure | 📄 Download PDF |
