Grundfos UNILIFT KP.150.AV.1
The Grundfos UNILIFT KP is a highly durable submersible pump constructed from stainless steel, making it ideal for all types of grey water and storm water handling around the home and in light industrial applications.
Features
- High corrosion resistance - Constructed of high quality industrial grade components. All parts in contact with water are made from 304 stainless steel.

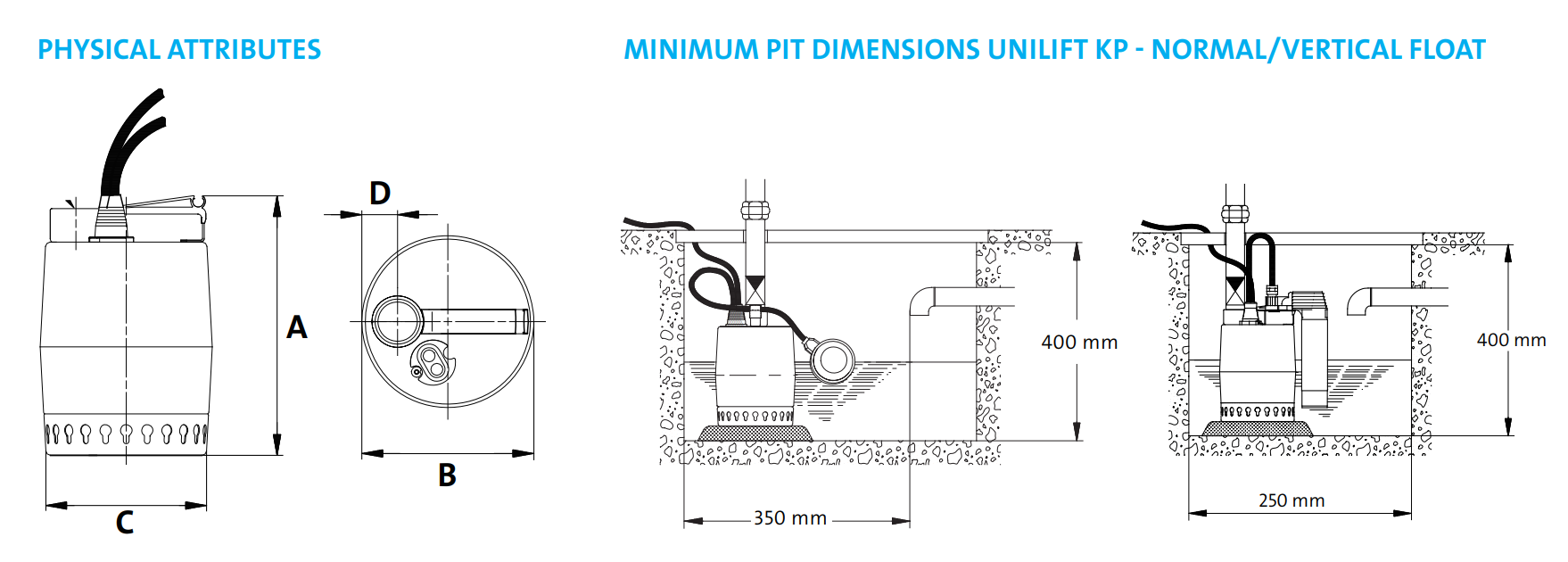

- Options for confined areas - A vertical Niro Float Switch option is available for installation into confined pits where a regular float may not operate properly
- Suitable for fully or partially submerged use - Comes with an integrated motor cooling jacket, allowing the pump to operate for extended periods whilst only partly submerged
- Light weight and portable - At a weight of no more than 7 kg the UNILIFT KP can be used in either a permanent installation or as a portable drainage pump
- Easy submerged installation – plug & pump - Connect the pump outlet to the pipework, plug into a power outlet and you’re ready to pump
Liquid temperature: 0°C to +50°C, 70°C for maximum 2 min, with at least 30 min intervals
Impeller type: Semi-open
Max. particle size: Diam 10 mm
Supply voltage: 1 x 220-230 Volt 50 Hz
Enclosure class: Suitable for submerged installation (IP68)
Scope of delivery: 5 m cable with plug & non return valve (AV1 version only)
Versions:
M.1 - Single phase without float switch
AV.1 - Single phase with vertical float switch
A.1 - Single phase with float switch
Specifications
| Product Model | UNILIFT KP.150.AV.1 |
| Product Number | 92533103 |
| Application | Commercial wastewater, Domestic wastewater, Industrial wastewater treatment & reuse |

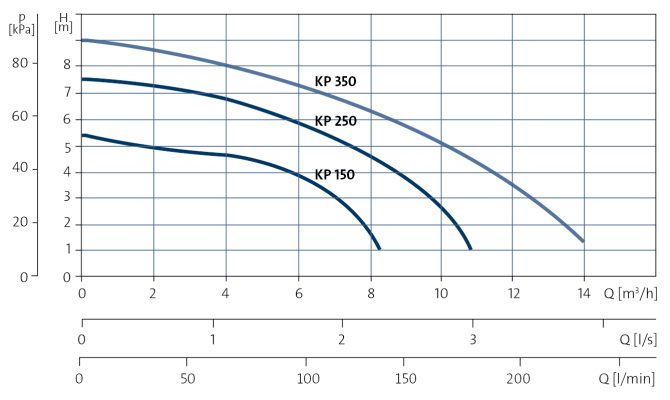

| Maximum Flow | 2.36 l/s |
| Rated Head | 2.94 m |
| Maximum Head | 5.5 m |
| Max. Particle Size | 10 mm |
| Rated Power (P2) | 0.15 kW |
| Voltage / Phase | 1 × 220-240 V, 50 Hz |
| Pump Housing | Stainless steel (AISI 304) |
| Impeller Material | Stainless steel (AISI 304) |
| Connection Type / Size | Rp / 1 1/4 inch |
| Enclosure Class | IP68 |
| Insulation Class | Class F |
| Built-in Motor Protection | Thermal, internal |
| Level Switch | Vertical (AV) |
| Net Weight | 6.6 kg |
| Gross Weight | 7 kg |
| Shipping Volume | 0.0126 m³ |
| Environmental Approvals | WEEE |
