Grundfos SOLOLIFT2 C-3 Lifting Station – Domestic Wastewater – 97775327
by Grundfos
SKU 97775327
Original price
$1,266.37
-
Original price
$1,266.37
Original price
$1,266.37
$1,266.37
-
$1,266.37
Current price
$1,266.37
📢 For orders over $100, FREE Shipping Australia-wide

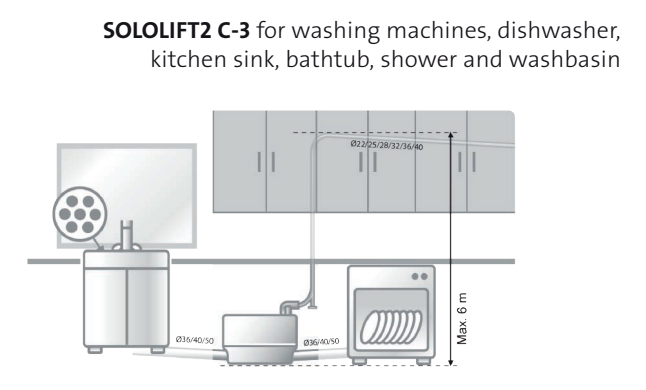

The Grundfos SOLOLIFT2 C-3 is a compact, ready-to-install automatic lifting station designed for greywater (without faeces) in private dwellings where gravity drainage is not possible. It is suitable for showers, washbasins, bathtubs, washing machines (max. 90 °C), and dishwashers. The unit allows extremely low switching levels for minimal construction height, making it ideal for confined spaces, built-in cabinets, or under washbasins.
Key Features:
- Automatic lifting station with integrated high-performance motor unit
- Suitable for greywater from domestic applications
- Flexible inlet connectors (Ø36/40 mm) and multiple outlet adaptors (Ø22–40 mm)
- Manual anti-clogging function and separate service drain connection
- Integrated non-return valve, level switch, and thermal protection
- Outlet adaptor can be mounted vertically or horizontally to optimize flow
- Compliant with EN12050-2 and externally inspected for quality
Key Specifications:
| Product Model | SOLOLIFT2 C-3 |
| Product Number | 97775327 |
| Rated Flow | 1.7 l/s |
| Maximum Flow | 3.4 l/s |
| Rated Head | 5.95 m |
| Maximum Head | 8.5 m |
| Pump Speed | 2800 rpm |
| Type of Impeller | VORTEX |
| Max Particle Size | 10 mm |
| Pumped Liquid | Grey wastewater |
| Liquid Temperature Range | 0 – 75 °C |
| Selected Liquid Temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Tank Volume | 6 l |
| Maximum Operating Pressure | PN 1.5 |
| Inlet Connection | Smooth pipe Ø32/36/40, 36/40/50 (1–1.5 inch) |
| Outlet Connection | Smooth pipe Ø22/25/28/32/36/40 (0.5–1.25 inch) |
| Electrical Power Input P1 | 640 W |
| Rated Power P2 | 0.42 kW |
| Mains Frequency | 50 Hz |
| Rated Voltage | 1 x 220–240 V |
| Rated Current | 3.1 A |
| Power Factor (Cos φ) | 0.9 |
| Number of Poles | 2 |
| Enclosure Class | IP44 |
| Insulation Class | F |
| Thermal Protection | THERMIK S06-140-05 |
| Power Cable Type | H05VV-F-3G, Length: 1.2 m, Plug: AUSTRALIEN |
| Net Weight | 6.53 kg |
| Gross Weight | 8.1 kg |
| Shipping Volume | 0.036 m³ |
| Country of Origin | RS |
| Approvals | CE, CHROHS, MORO, RCM, WATERMARK |
| Curve Tolerance | ISO9906:2012 3B |
Docs / Download
| GRUNDFOS PUMPS FOR HOME AND GARDEN (Product brochure) |
