Grundfos SOLOLIFT2 D-2 Lifting Station – Domestic Wastewater – 97775328
by Grundfos
SKU 97775328
Original price
$1,009.25
-
Original price
$1,009.25
Original price
$1,009.25
$1,009.25
-
$1,009.25
Current price
$1,009.25
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos SOLOLIFT2 D-2 is a compact, ready-to-install automatic lifting station with an integrated cutter system, designed for pumping grey wastewater (without faeces) from private dwellings. Ideal for basements, renovations, or situations where gravity drainage is not possible, the unit ensures low switching levels, easy installation, and reliable operation.
Key Features:
- Automatic lifting station with integrated cutter system
- Suitable for grey wastewater from showers, washbasins, or bidets
- Extremely low switching levels for minimal construction height

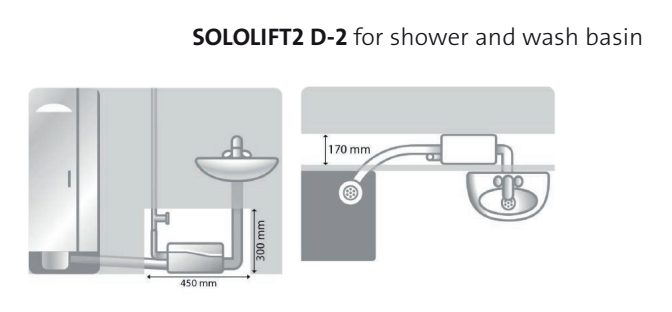

- Compact design for installation in built-in cabinets or below shower receptors
- Integrated non-return valve, thermal protection, pressure switch, and controller
- Flexible inlet connectors and multiple outlet adaptors (Ø22–36 mm)
- Manual anti-clogging function and separate service drain connection
- Compliant with EN12050-2 and externally inspected for quality
Key Specifications:
| Product Model | SOLOLIFT2 D-2 |
| Product Number | 97775328 |

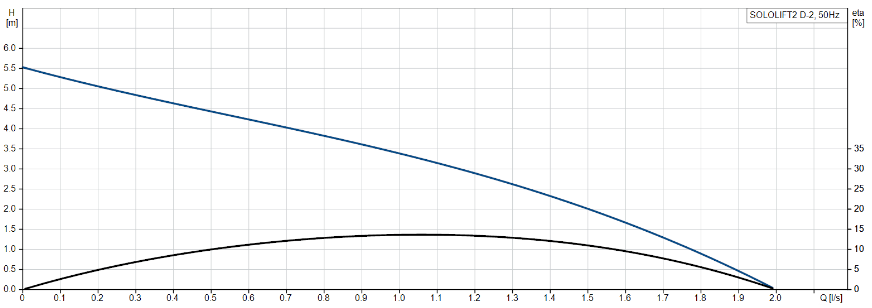

| Rated Flow | 1.06 l/s |
| Maximum Flow | 1.98 l/s |
| Rated Head | 3.26 m |

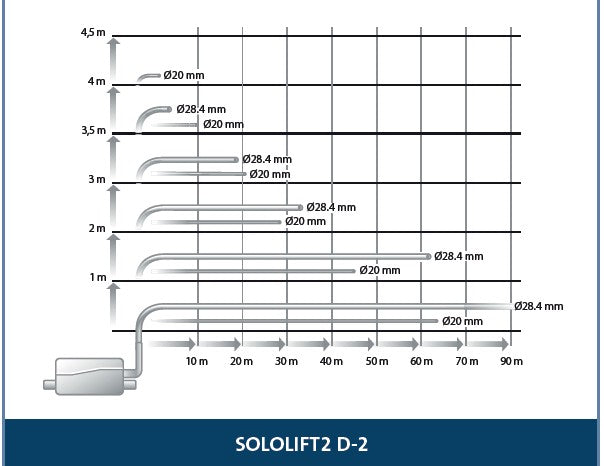

| Maximum Head | 5.5 m |
| Pump Speed | 2800 rpm |
| Type of Impeller | VORTEX |
| Max Particle Size | 10 mm |
| Pumped Liquid | Grey wastewater |
| Liquid Temperature Range | 0 – 50 °C |
| Selected Liquid Temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Tank Volume | 2 l |
| Maximum Operating Pressure | PN 1.5 |
| Inlet Connection | Smooth pipe Ø36/40/50 (1.25/1.5 inch) |
| Outlet Connection | Smooth pipe Ø22/32 (0.75/1 inch) |
| Electrical Power Input P1 | 280 W |
| Rated Power P2 | 0.16 kW |
| Mains Frequency | 50 Hz |
| Rated Voltage | 1 x 220–240 V |
| Rated Current | 1.3 A |
| Power Factor (Cos φ) | 0.95 |
| Number of Poles | 2 |
| Enclosure Class | IP44 |
| Insulation Class | F |
| Thermal Protection | THERMIK S06-160-05 |
| Power Cable Type | H05VV-F-3G, Length: 1.2 m, Plug: AUSTRALIEN |
| Net Weight | 4.78 kg |
| Gross Weight | 6.25 kg |
| Shipping Volume | 0.022 m³ |
| Country of Origin | DE |
| Approvals | CE, CHROHS, MORO, RCM, WATERMARK |
| Curve Tolerance | ISO9906:2012 3B |
Docs / Download
| GRUNDFOS PUMPS FOR HOME AND GARDEN (Product brochure) |
