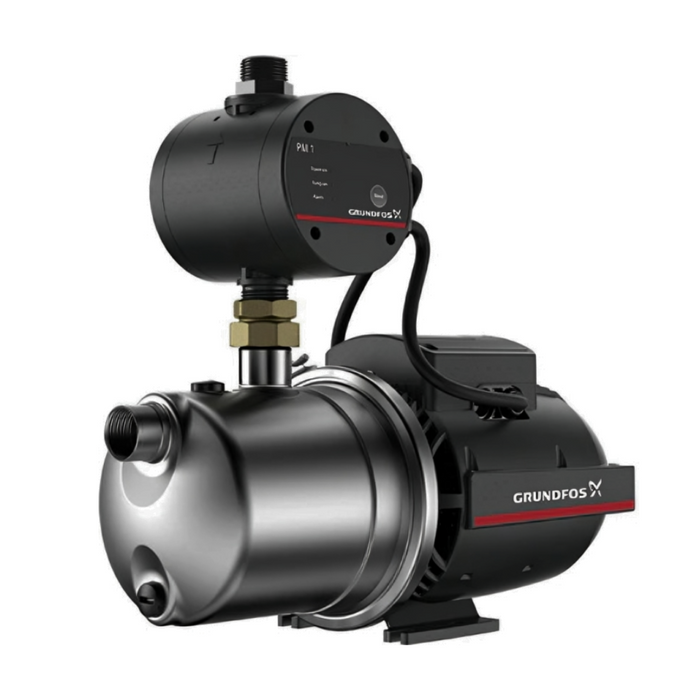

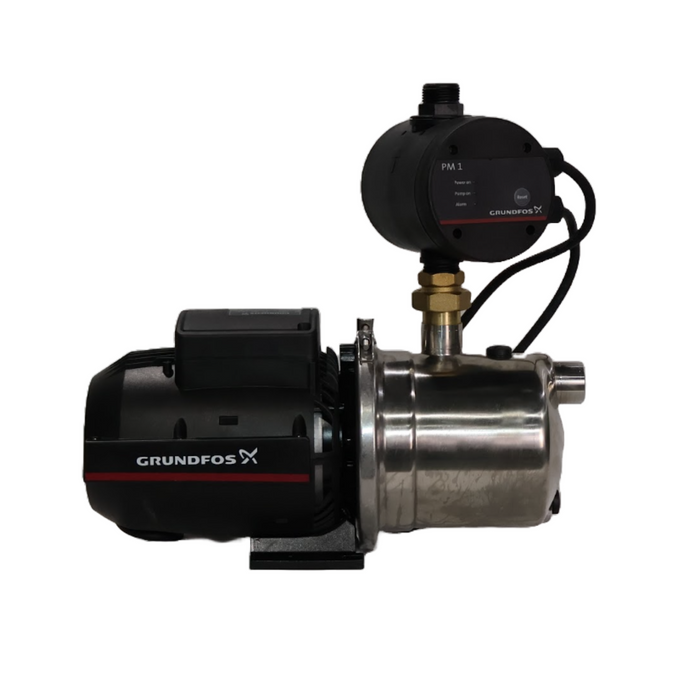

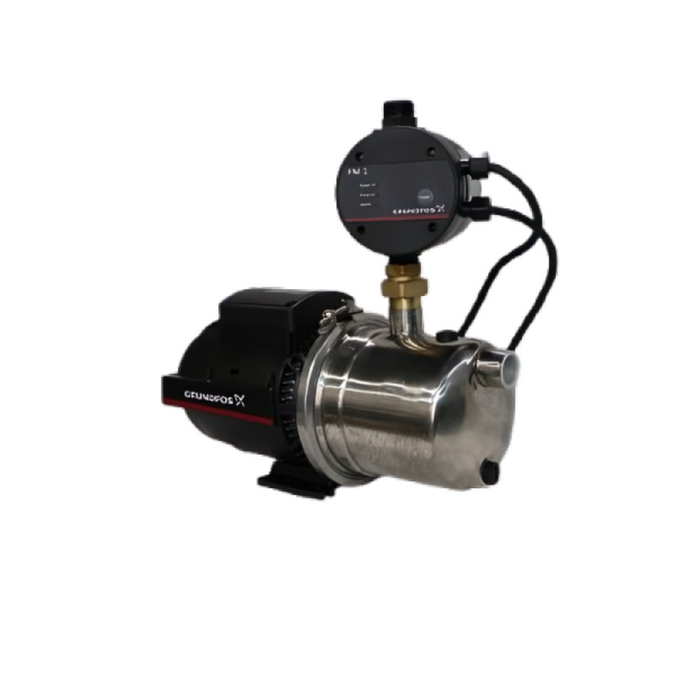

Grundfos JP 3-42 PM1 with pressure manager

The JP-PT booster consist of a JP self-priming pump, a pressure switch and a 20 L pressure tank. The pressure switch automatically starts the pump according to demand (cut in 2.2 bar). The diaphragm tank limits the start/stop of the pump.

Please note these pumps do not contain a non-return valve, so please order one and fit to the pump discharge if pumping from an above ground tank to ensure the pressure system operates reliably. If pumping from a bore or below ground tank please use a foot valve instead.

Features

• For water sources above and below pump level - Designed with good suction lift capabilities, the pump is able to draw water up to 8 metres vertically from below the level of the pump
• Excellent value for money - Ideal for small to medium household use
• Built to last - Constructed of corrosion resistant composite and stainless steel components
• Easy installation – plug & pump - Connect the pump inlet and outlet to the pipework, prime the pump, plug into a power outlet and you’re ready to pump

Components:

• Self-priming JP pump (see pumps characteristics above)
  - 20 L diaphragm tank
  - Pressure switch (cut-in pressure set at 2.2 bar) and pressure gauge
  - Cable 1.5 m with plug

Specifications
