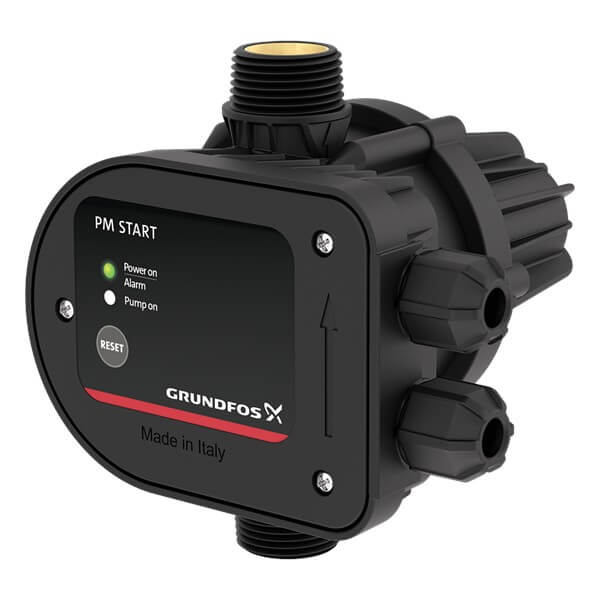

Grundfos PM START Pressure Manager – 2.2 Bar Start / 1" G / 1x220–240V – 93159128
by Grundfos
SKU 93159128
Original price
$159.57
-
Original price
$159.57
Original price
$159.57
$159.57
-
$159.57
Current price
$159.57
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos PM START is a pump pressure manager designed for automatic start and stop control of water supply pumps. It features a brass valve body with 1" G threaded connections and operates at a fixed start pressure of 2.2 bar. The unit supports pumps up to 1.5 kW with a rated current of 10 A and operates on single-phase 220–240 V power. Equipped with dry-running protection, non-return valve, automatic restart, and an IP65 enclosure, it ensures reliable operation for domestic and light commercial water systems.
Suitable Applications
- Domestic water supply systems
- Booster pump control
- Garden and irrigation systems
- Automatic pump start/stop applications
Key Specifications
| Product Name | PM START |
| Product Number | 93159128 |
| EAN | 5715468658575 |
| Pump Type | Pressure Manager |
| Rated Flow | 1 m³/h (minimum) |
| Liquid Temperature Range | 0 .. 60 °C |
| Maximum Operating Pressure | 10 bar |
| Connections | G 1 inch |
| Base / Head Material | Brass |
| Motor Power (P2) | Up to 1.5 kW |
| Voltage | 1 x 220–240 V |
| Frequency | 50 / 60 Hz |
| Rated Current | 10 A |
| Enclosure Class | IP65 |
| Net / Gross Weight | 0.87 kg / 1.1 kg |
| Shipping Volume | 0.006 m³ |
| Approvals | CE |
Documentation & Downloads
| Quick Guide | Download |
| Datasheet | Download |
| Installation & Operating Instructions | Download |
| Installation & Operating Instructions (Alt) | Download |
| Safety Instructions | Download |
| Data Booklet | Download |
