Grundfos Pressure Tank - GT-H-60 PN10 G1 V

GT-H is a steel pressure tank with a non-toxic butyl rubber diaphragm with a precision-moulded polypropylene liner for air and water separation designed for drinking water applications.

Vertical or horizontal pressure tanks suitable for potable-water applications with high quality liner and diaphragm.

Features

Material tank body: Carbon Steel
Material diaphragm: Butyl suitable for potable water
Material connections: Stainless steel

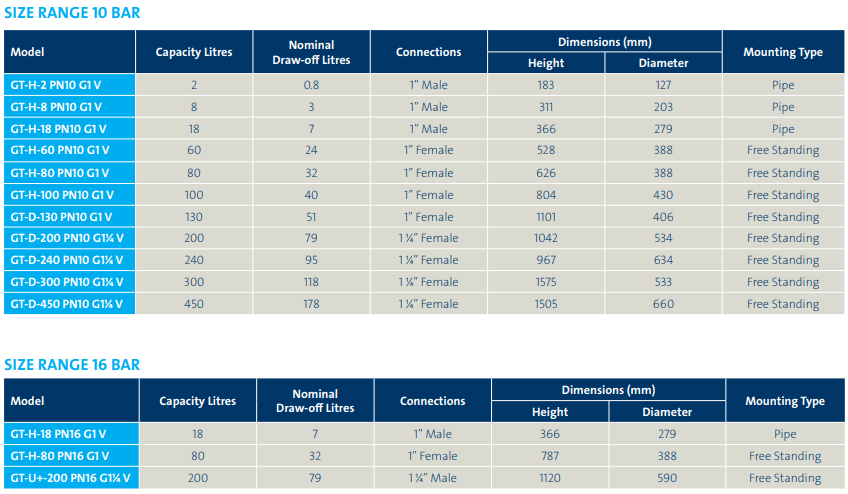

Maximum pressure: 10 or 16 bar (see table)
Maximum liquid temperature: 70°C
Factory pre-charge pressure: 10 Bar Max = 1.9 bar 16 Bar Max = 4 bar
