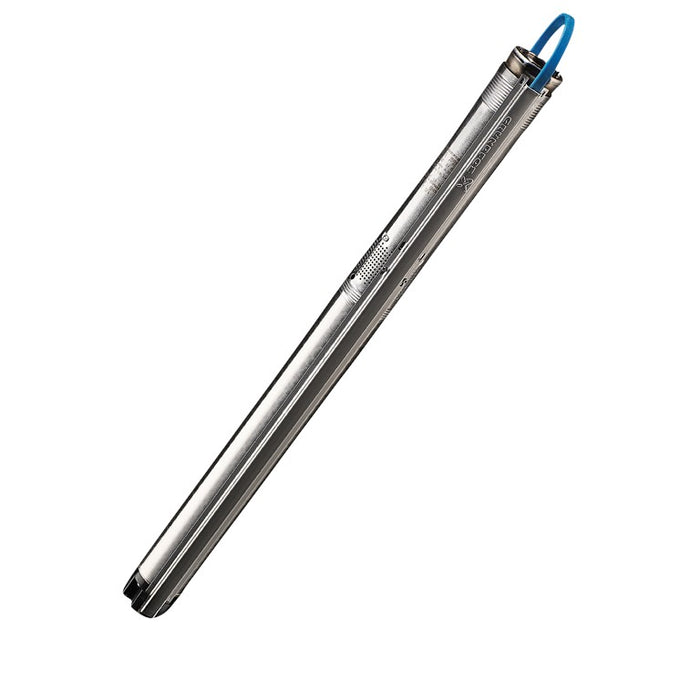

Grundfos SQE 7-55 N Submersible Pump – 96160468
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos SQE 7-55 N is a 3" multi-stage submersible pump designed for domestic water supply, tank liquid transfer, irrigation, and environmental applications. It features “floating” impellers, each supported by a tungsten carbide/ceramic bearing for durability. The pump offers soft starting and comprehensive protection against dry-running, upthrust, overvoltage, undervoltage, overload, and overtemperature.
The motor is a single-phase permanent magnet rotor type delivering high efficiency across a wide load range. It is equipped with a replaceable end cover with socket and supports variable speed operation when paired with CU300 or CU301 controllers.
Suitable for:
- Domestic ground water intake
- Domestic water pressure boosting
- Ground water intake
- Submersible pumps with variable speed motor
Key Features:
- Floating impellers with tungsten carbide/ceramic bearings
- Soft starting
- Protections: dry-running, upthrust, overvoltage/undervoltage, overload, overtemperature
- Stainless steel construction (AISI 316 / EN 1.4401)
- Built-in non-return valve
- Variable speed operation with CU300/CU301
- Enclosure class IP68; Insulation class F
- Minimum borehole diameter: 76 mm
- Maximum operating pressure: 15 bar
Technical Specifications:
| Specification | Value |
|---|---|
| Product name / No. | SQE 7-55 N / 96160468 |
| EAN | 5700832475179 |
| Pump speed (basis) | 10700 rpm |
| Rated flow | 7 m³/h |
| Rated head | 57 m |
| Stages | 4 |
| Curve tolerance | ISO9906:2012 3B |
| Approvals | CE, PCBC, RCM, EAC, CN RoHS Exempt, Morocco, UKCA, SEPRO |
| Maximum operating pressure | 15 bar |
| Pump outlet | RP1 1/2 |
| Minimum borehole diameter | 76 mm |
| Built-in non-return valve | Yes |
| Liquid temperature range | 0 – 35 °C (selected: 20 °C) |
| Liquid density | 998.2 kg/m³ |
| Electrical data | |
| Motor type | MSE3-N (single-phase PM rotor) |
| Power input (P1) | 2.46 kW |
| Rated power (P2) | 1.85 kW (pump requires 1.65 kW) |
| Mains frequency | 50 Hz |
| Rated voltage | 1 × 200–240 V |
| Rated current | 12.3 A |
| Power factor | 1.00 |
| Start method | Direct-on-line (DOL) |
| Enclosure class / Insulation class | IP68 / F |
| Built-in motor protection / Thermal protection | Yes / Internal |

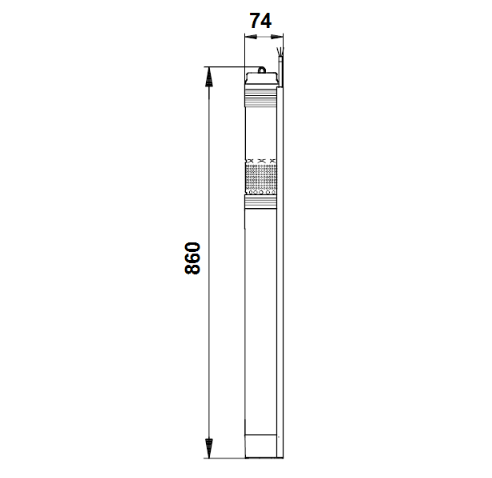

| Dimensions & Misc. | |
| Cable length | 1.5 m (cable kit: Yes) |
| Motor No. | 96195297 |
| Pump No. / Model | 96080748 / D |
| Net / Gross weight | 6.2 kg / 7.2 kg |
| Sales region | Australia |
Materials:
| Component | Material | Standard |
|---|---|---|
| Pump | Stainless steel | EN 1.4401 / AISI 316 |
| Impeller | Composite | ZYTEL 70G30 HSLR PA6.6-GF30 |
| Motor | Stainless steel | DIN W.-Nr. 1.4401 / AISI 316 |
Controls:
- Communication with CU300/CU301 possible (variable speed operation)
Documentation & Downloads:
| Document | Download |
|---|---|
| SQ, SQE (I & O instructions) | |
| SQ, SQE, SQFlex (Safety instructions) | |
| SQ, SQE, SQE-NE – submersible pumps (Data booklet) | |
| SQ, SQE (Service Kit Catalogue) | |
| SQ, SQE, SQ-N, MS3, MSE3, Model A (Service Instruction) | |
| SQ, SQE, SQ-N Model B, MS3, MSE3 Model B (Service Instructions) |
