Grundfos CMB 1-36 - A-C-A-A-A-A -CM Booster

SKU 97530097
Original price $680.00 - Original price $680.00
Original price
$680.00
$680.00 - $680.00
Current price $680.00

In-Stock

Warranty Icon Warranty: Manufacturerโ€™s Warranty

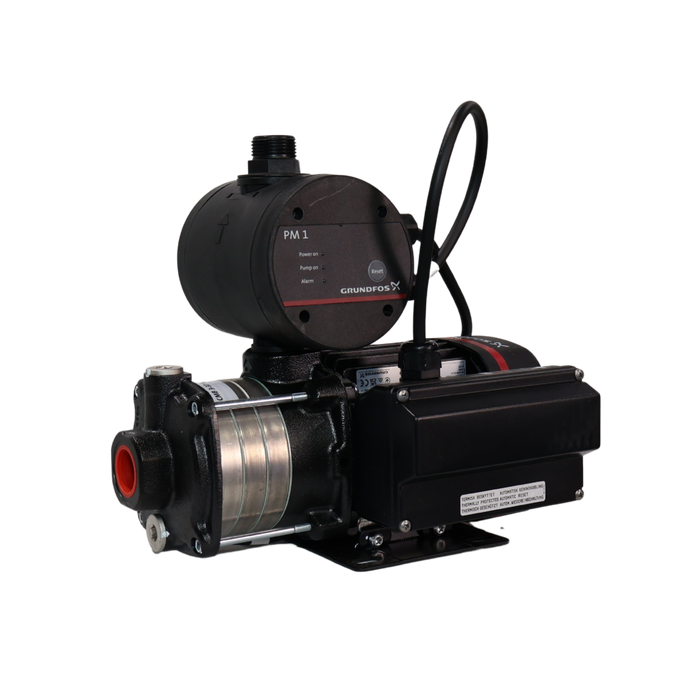

CMB PM is a small-sized pump booster fit for water supply in household and light commercial uses. It comes with a Grundfos PM1 or PM2 which automatically controls the start and stop of the pump depending on the need.

Features

  • Robust design
  • All moving parts are made from high quality, corrosion resistant stainless steel to ensure the longest life possible.
  • User-friendly interface
  • The pump features a user-friendly interface with LED indicators displaying power status, pump running, and alarm indication.

Explore more of our Grundfos Pumps at Pumptasticยฎ.

Product Image

MOTOR

Product Image

CMB PM is a small-sized pump booster fit for water supply in household and light commercial uses. It comes with a Grundfos PM1 or PM2 which automatically controls the start and stop of the pump depending on the need.

Features

  • Robust design
  • All moving parts are made from high quality, corrosion resistant stainless steel to ensure the longest life possible.
  • User-friendly interface
  • The pump features a user-friendly interface with LED indicators displaying power status, pump running, and alarm indication.

Explore more of our Grundfos Pumps at Pumptasticยฎ.

Product Image

MOTOR

Product Image

Specifications
Pump speed 2900 rpm
Rated flow 1.7 m³/h
Rated head 23.7 m
Impellers 4
Primary shaft seal AVBE
Code for shaft seal AVBE
Approvals CE,RCM
Curve tolerance ISO9906:2012 3B
Model B
Return valve YES
Self-priming N/A
Start pressure PM1 - 1.5 bar
Voltage 220-230V, 50Hz
Application
  • Household water supply
  • Boosting from above ground water tanks
  • Light industrial use
