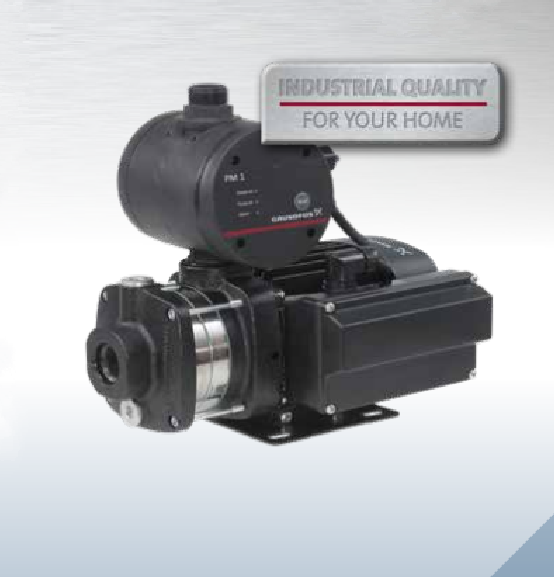

Grundfos CMB 3-37 - CM Booster

The CM Booster consists of a horizontal multistage centrifugal pump CM and a Grundfos Pressure Manager. The pump is suitable for above ground tanks (not for self priming).

For self-priming options, see CM Booster Self-Priming.

Components: - Non self-priming stainless steel pump with PM1- Cable 1.2 m with plug
Liquid temperature: 0°C to +60°C
Ambient temperature: 0°C to +55°C
Supply voltage: 1 x 240 Volt 50 Hz
System pressure: Maximum 10 bar
Enclosure class: Suitable for covered installation (IP55)

Applications

• Household water supply
• Boosting from above ground water tanks
• Light industrial use

Features

• Robust design
• All moving parts are made from high quality, corrosion resistant stainless steel to ensure the longest life possible.
• User-friendly interface
• The pump features a user-friendly interface with LED indicators displaying power status, pump running, and alarm indication.

Protective features

• The pump incorporates a range of protective features such as dry run protection, thermal overload protection, and cycling alarm to protect the pump and ensure a long life.

Easy installation

• The booster unit is a compact solution, which makes it suitable for most installations. Simply connect the inlet and outlet and you have a fully operational booster unit.

Integrated non-return valve
Non-return valve for backflow prevention.
