Grundfos LIFTAWAY C40-1: DOMESTIC SMALL LIFTING STATION FOR GREY WATER

Grundfos Liftaway C40-1 is designed to be equipped with a Unilift KP A1 pump, in order to obtain a compact pumping station to collect and lift wastewater to the sewer network.
The lifting station is designed to collect waste water, without faeces with a maximum particle size of 10 mm from washing machines, showers, washbasins, sinks, etc.

Features

Liquid temperature: 0°C to +50°C, 70°C for maximum 2 min, with at least 30 min intervals (KP)

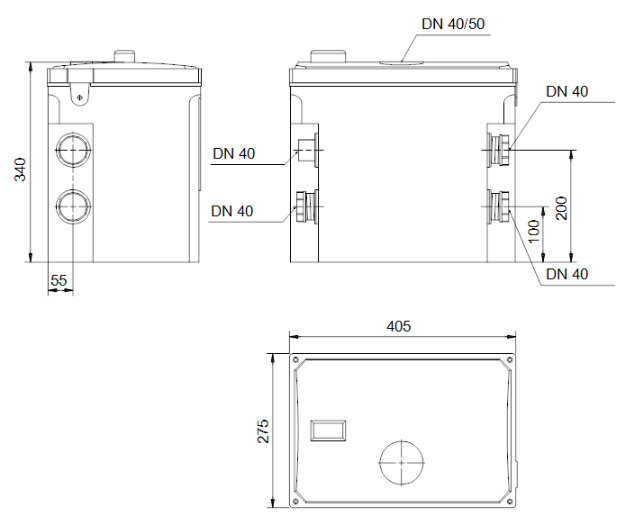

Inlet connections: 3 x DN 40, 1 x DN 40/50 in cover
Outlet connection: 1 x DN 40
Effective tank volume: 13 Litre
Scope of delivery: Non-return valve, hose and fittings for pump connection, air vent cap
with carbon filter (excludes pump)
Pump: UNILIFT KP with level switch for automatic start/stop -version A1-
must be ordered separately
