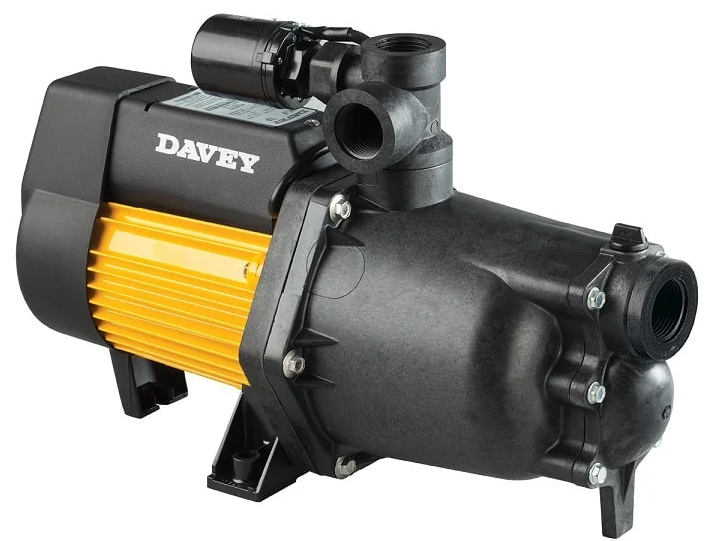

Davey XJ90P pressure pump (no tank incl - supply seperately) 1.1kW 240V 50Hz 1ph incl pressure switch

FEATURES AND BENEFITS

• Manufactured from highest quality corrosion resistant materials
• Compact base mounting for quick and easy installation
• Fully adjustable pressure switch allows for installation adjustments
• TEFC motor-corrosion resistant and excludes dust and dirt
• Motor and pump designed for frequent starts
• Every tank and pump unit individually tested to guarantee reliable operation
• Low maintenance
• Easy to service if required

PUMP

• Single stage jet assisted centrifugal with closed vane impeller.
• 303 stainless steel pump shaft.
• Internal suction side check valve fitted.
• Mechanical shaft seal.
• O-ring casing seals.
• Pressure switch control with adjustable cut-in and cut-out pressure

MOTOR

• Davey manufactured.
• 2 pole, 2850rpm, 50Hz.
• TEFC with IP55 enclosure.
• Class F insulation.
• Permanently split capacitor design.
• Double contact sealed C3-HTG rated ball bearings.
• Protected against both high operating temperatures and high current by a built-in automatically resetting thermal overload

Note: These pumps must be installed with a Davey Supercell pressure tank. Davey recommend the 24008P or 24018P tank for top mounting onto the pump.
